Advanced Electromagnetic Measurement Techniques: From DC to THz

A material gets labeled "conductive," "insulating," "shielding," or "absorbing"—and that label is treated as if it settles the question. It rarely does. The same carbon composite that reads as mildly resistive on a DC meter can reflect strongly at 1 GHz, absorb moderately at 10 GHz, and become largely transparent at 100 GHz. The same ferrite that suppresses noise on a cable at 100 MHz may offer negligible magnetic response at 10 GHz. A DC resistance measurement does not predict microwave shielding. A single-frequency cavity measurement does not capture a material's broadband behavior.

Electromagnetic material characterization is not one measurement. It is a family of techniques that changes dramatically from DC to THz because the way fields interact with matter changes with frequency, geometry, wavelength, impedance, and material loss. EMI shielding, RF absorption, static charge control, antenna loading, radome design, semiconductor handling, and millimeter-wave communications all require different views of the same material.

To understand the measurement methods, we first need to understand what they are trying to measure.

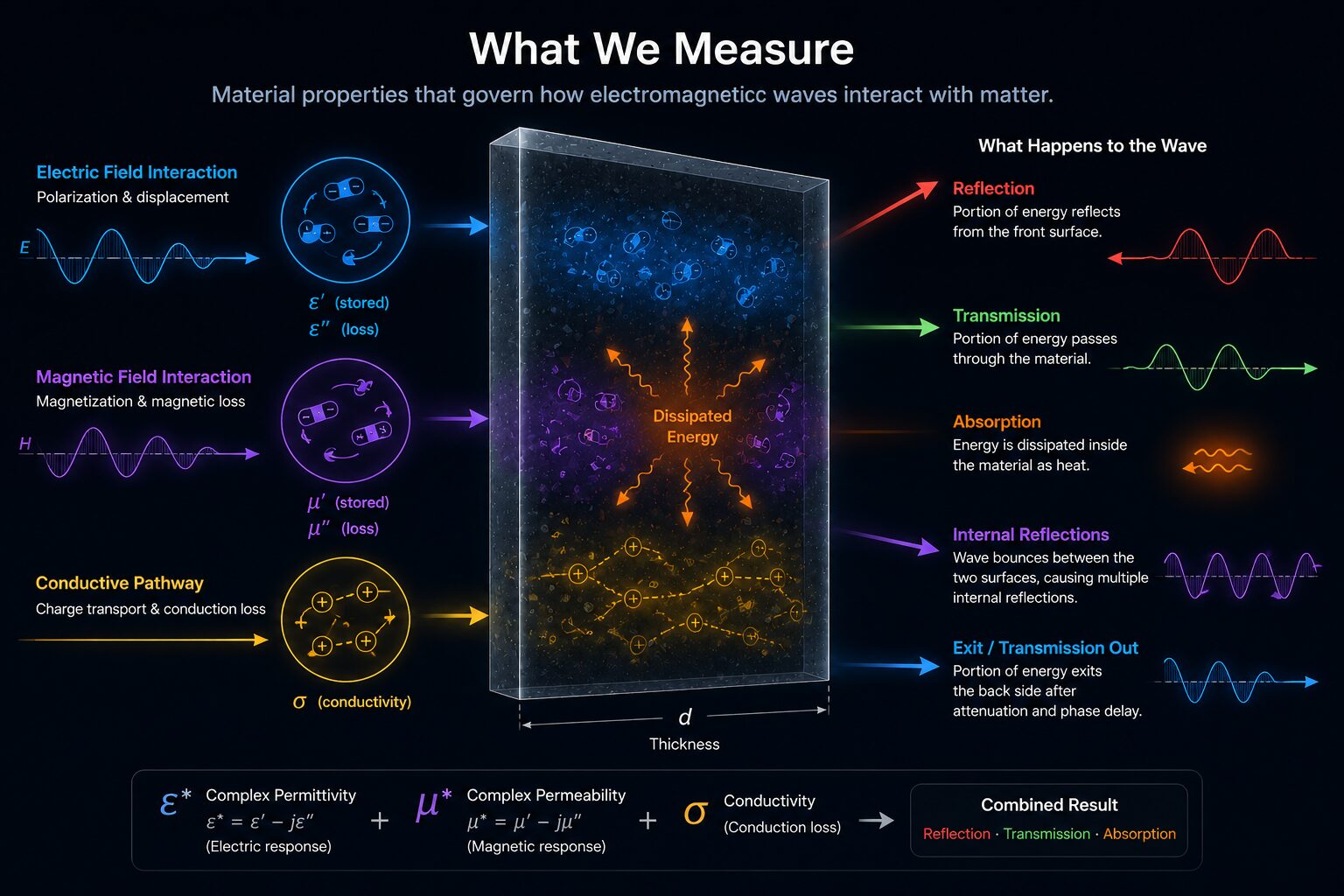

What We Measure: Complex Permittivity and Complex Permeability

Complex Permittivity

Permittivity describes how a material responds to an applied electric field.1 It is not a single number. It is a complex quantity written as:

The real part, εr′, is the dielectric constant. It describes how much electric field energy the material stores relative to vacuum—think of it as the material's capacity to be polarized. A high εr′ means the material concentrates electric field energy internally, shortens the wavelength inside the material, and creates a stronger impedance contrast with air.

The imaginary part, εr″, describes dielectric loss: energy that is converted to heat rather than stored and returned. Loss arises from several mechanisms—molecular dipole rotation, ion hopping, interfacial charge accumulation, and ohmic conduction all contribute depending on frequency and material structure. For materials with appreciable conductivity, the effective loss term includes both the intrinsic polarization loss and a conductivity contribution:

This means that a material's apparent dielectric loss at low frequencies is often dominated by its conductivity rather than its molecular polarization behavior. The two contributions separate at different frequencies, which is one reason why measuring across a wide frequency range matters.

The ratio of loss to storage is expressed as the loss tangent:

A low loss tangent means the material stores field energy efficiently with little dissipation—desirable in substrate and radome materials. A high loss tangent means the material converts field energy to heat—relevant for absorber materials, but only if the wave can enter the material in the first place.

Permittivity is not a constant. It varies with frequency, temperature, material orientation, moisture content, mixture composition, and applied stress.1 Treating it as a fixed number is almost always an approximation.

Complex Permeability

Permeability describes how a material responds to an applied magnetic field. Like permittivity, it is complex:

The real part, μr′, describes magnetic energy storage. The imaginary part, μr″, describes magnetic loss—energy dissipated through domain wall motion, magnetic relaxation, ferromagnetic resonance, eddy currents, and hysteresis. The magnetic loss tangent follows the same form:

Most polymers, glasses, ceramics, and carbon composites are essentially non-magnetic at RF and microwave frequencies, with μr ≈ 1. For these materials, permeability plays no role in measurement or modeling—only permittivity and conductivity matter.

Ferrites, iron, nickel, cobalt, and their alloys can carry significant permeability above 1, but magnetic properties are often strongly frequency-dependent, and μr typically falls toward 1 well before or at ferromagnetic resonance frequencies.1 Understanding where that rolloff occurs is critical for any magnetic material application.

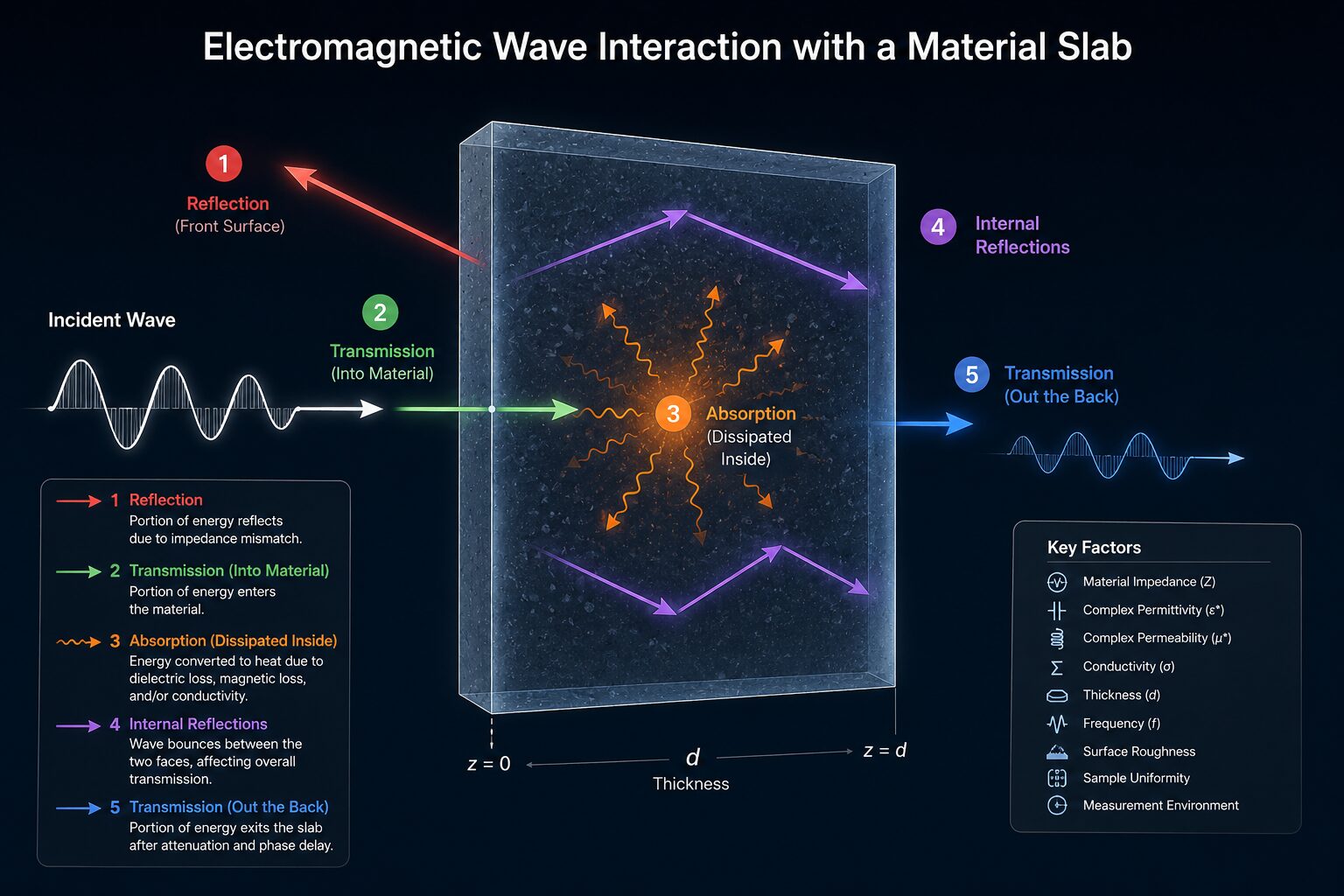

How Electromagnetic Waves Interact with a Slab of Material

When an electromagnetic field encounters a flat slab of material, several things happen simultaneously. Some energy reflects from the front surface. Some energy enters the material. Some of that energy is dissipated as heat inside the material. Energy that reaches the back surface may partially reflect internally and partially transmit out the far side. The multiple internal reflections can add constructively or destructively depending on thickness and wavelength, creating interference effects that cause shielding effectiveness and reflectivity to vary with frequency even for materials whose intrinsic properties are relatively flat.2

The outcome depends on complex permittivity, complex permeability, conductivity, thickness, frequency, and the geometry of how the field is applied.

The Central Concept: Impedance Matching

A wave does not enter a material simply because the material is lossy. It enters efficiently when the material's wave impedance is reasonably matched to the impedance of the surrounding medium.

The wave impedance of a material is approximately:

In free space, this is approximately 377 Ω. For a good conductor like copper, η is a small fraction of an ohm—orders of magnitude lower than free space. That extreme impedance mismatch means that nearly all incident energy reflects before it has a chance to be absorbed. Copper is an excellent shield because it reflects, not because it absorbs.

For a material to absorb strongly, it must allow the wave to enter in the first place. That requires the material impedance to be reasonably close to 377 Ω at the surface. Engineered absorbers often use graded structures, magnetic loading, or resistive gradients to manage this transition. High conductivity alone does not guarantee high absorption—it often guarantees high reflection and low absorption.

This also means that extraction of material properties from S-parameter measurements is model-dependent. The models assume a specific geometry, field structure, and calibration. Deviations from those assumptions—including air gaps, sample roughness, incorrect thickness, or anisotropy—can introduce errors that rival or exceed the measurement itself.3

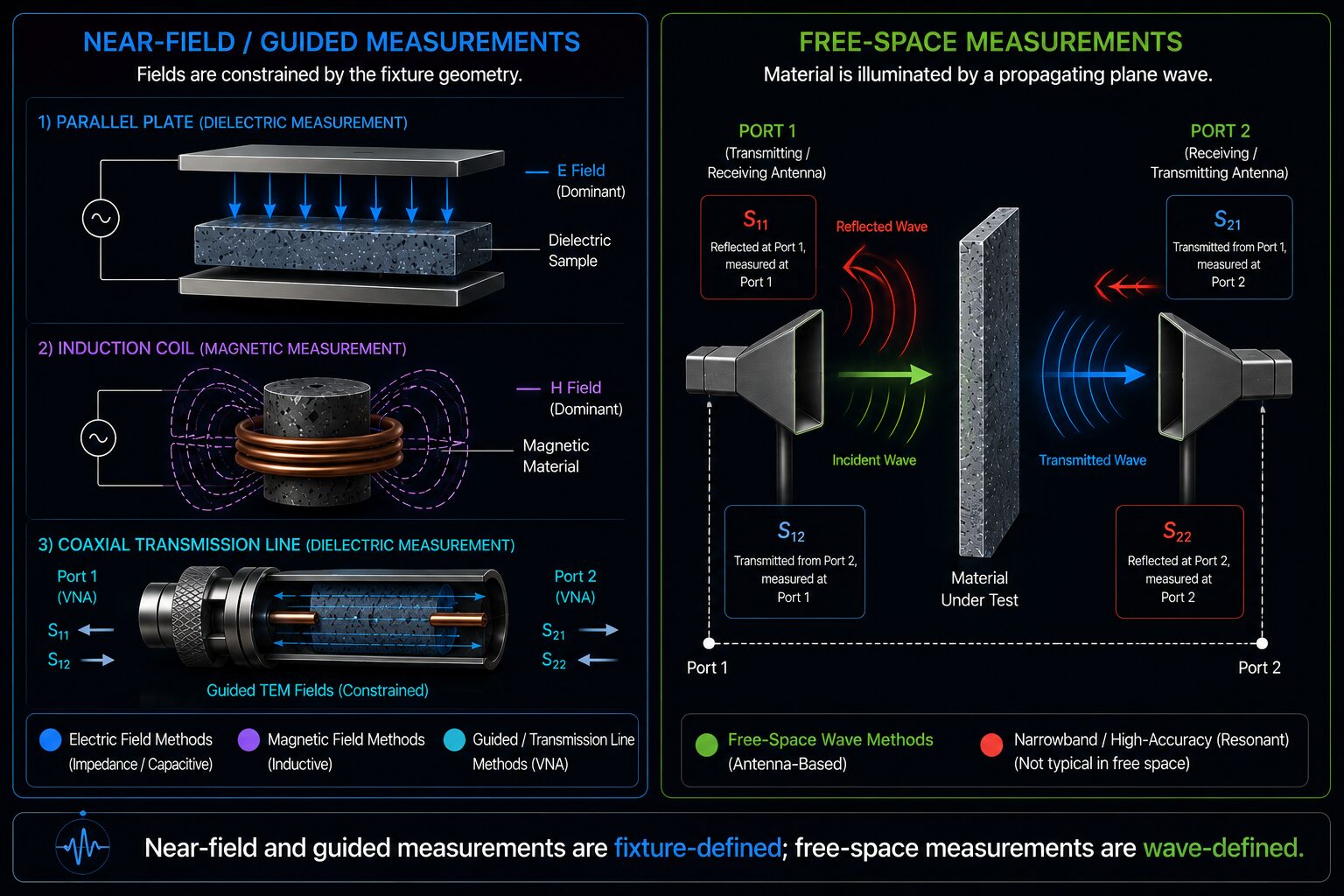

Near-Field and Guided Measurements vs Free Space

The distinction between near-field and free-space interaction is fundamental to choosing and interpreting measurement methods.

In near-field and guided-wave fixtures, the material interacts with fields that are defined by the fixture geometry, not by free-space propagation. A parallel plate capacitor subjects the sample to a predominantly electric field. An induction coil or toroidal fixture subjects it to a predominantly magnetic field. A coaxial transmission line guides a quasi-TEM mode whose impedance is set by the conductor geometry—typically 50 Ω. A rectangular waveguide guides TE or TM modes at impedances that depend on the waveguide dimensions and frequency, and which are not 377 Ω. In all of these cases, the "impedance" seen by the material is not the free-space impedance.

In free-space measurements, the material is illuminated by a propagating wave in which the electric and magnetic fields arrive together, coupled, at a ratio near 377 Ω. This is how a radar pulse, a satellite signal, or a millimeter-wave communication beam actually interacts with an exposed material surface. Free-space measurements are therefore more directly representative of real-world electromagnetic exposure conditions—and more directly interpretable in terms of reflection, transmission, and absorption of incident plane waves.3

Neither approach is inherently superior. They measure different aspects of the same material's electromagnetic behavior, and the best workflow uses both.

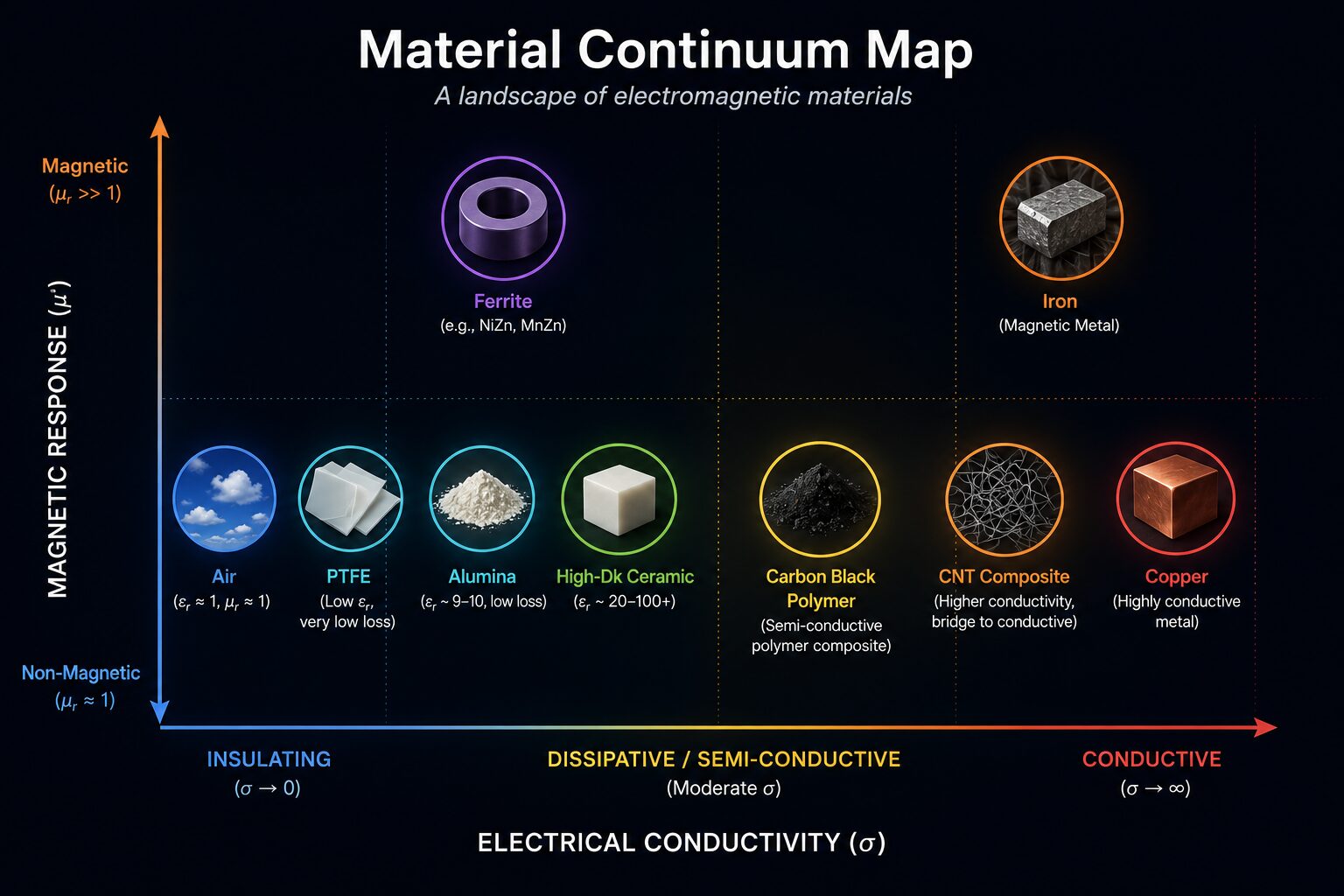

A Guide to Material Types: Dielectrics, Conductors, Lossy Composites, and Magnetic Materials

Before discussing measurement methods, it helps to understand the major classes of electromagnetic materials and how they differ in their interaction with fields and waves.

Low-Loss, Low-Permittivity Dielectrics: Air, PTFE, Foams

Materials like air, PTFE, and low-density foams represent one corner of the electromagnetic material space. Their permittivity is close to 1 (or slightly above), their loss tangent is very low, and they are non-magnetic. When a wave encounters these materials, very little energy reflects at the surface because the impedance contrast with air is small. Very little energy is absorbed because the loss tangent is low. The primary effect is a modest phase delay as the wave slows inside the material.4

These materials are useful precisely because they are electromagnetically transparent—they make excellent radome skins, low-loss substrates, insulating spacers, and structural components in RF assemblies where minimal field perturbation is required.

At microwave frequencies, high-quality PTFE and foam materials remain low-loss. At THz frequencies and into the infrared, molecular vibrational modes and phonon interactions can increase absorption significantly, and the simple low-frequency picture breaks down.

Low-Loss, High-Permittivity Dielectrics: Ceramics, High-Dk Oxides

High-permittivity dielectrics store more electric field energy per unit volume than low-Dk materials. The wavelength inside the material shortens proportional to √(εr′). A high εr′ creates a larger impedance contrast with air, so a greater fraction of incident energy reflects even if the loss tangent is low.4 High-Dk materials can support resonant behavior at shorter electrical lengths, which makes them valuable for miniaturized antennas, resonators, capacitors, and dielectric filters—but high Dk alone does not mean high absorption.

As frequency increases, slower polarization mechanisms cannot follow the applied field and drop out. This causes εr′ to decrease with frequency across relaxation transitions. Loss can increase near those transitions. Understanding where these transitions occur is essential for any application that spans a wide frequency range.

Conductive Materials and Metals

Good conductors like copper, aluminum, silver, and stainless steel are described at DC by their bulk conductivity or resistivity. At RF and microwave frequencies, the picture changes. Fields penetrate only a short distance into the metal—the skin depth—which decreases with the square root of frequency. At 1 GHz, the skin depth in copper is roughly 2 μm. At 10 GHz, it is under 1 μm. This means that surface currents, not bulk volume conduction, determine the RF behavior of a metal.5

The wave impedance of a good conductor is far below 377 Ω—often by four to six orders of magnitude at microwave frequencies. That extreme mismatch causes strong front-surface reflection. Most of the incident wave energy never enters the metal. What little does enter is absorbed rapidly within the skin depth. This is why metals provide excellent shielding effectiveness: they shield primarily through reflection, with a secondary absorption contribution in the surface skin layer.

At optical frequencies, metals are better described using dispersive complex permittivity and plasma or Drude-type models rather than simple conductivity. The skin-depth picture still applies, but the physical mechanisms are described differently.

Semiconducting and Lossy Composite Materials

Between ideal dielectrics and metals lies a broad and practically important class of materials: carbon black composites, carbon nanotube networks, graphene-loaded polymers, conductive ceramics, partially percolated nanocomposites, and static dissipative compounds. These materials represent some of the most difficult electromagnetic characterization challenges.

At low frequencies, interfacial polarization—sometimes called Maxwell-Wagner-Sillars polarization—can cause extremely high apparent permittivity due to charge accumulation at filler-matrix interfaces. This effect can make ε′ appear very large at kHz frequencies even when the microwave behavior is quite different. DC conductivity measured on these materials does not reliably predict GHz shielding or absorber performance.3

At higher frequencies, slower polarization mechanisms cannot follow the field and the apparent permittivity decreases. Whether the material reflects, absorbs, or transmits at a given microwave frequency depends on the interplay between the network morphology, filler dispersion, tunneling conductance, and the resulting impedance relative to 377 Ω. A material that is too conductive becomes reflective. A material that is well-engineered can allow fields to enter and then dissipate energy efficiently—but achieving this requires understanding the frequency-dependent complex permittivity across the entire operating range.6

Magnetic Materials: Ferrites and Magnetic Metals

Magnetic materials add a second dimension to the electromagnetic interaction: the material responds to both the electric and magnetic components of the wave.

Ferrites are typically electrically insulating or semiconducting magnetic ceramics. Because their conductivity is low, electromagnetic fields can penetrate into the material volume without being immediately screened by surface currents. This allows ferrites to provide magnetic loss—through domain wall resonance, spin resonance, and relaxation—at frequencies where magnetic metals would be limited by eddy currents. Ferrites are widely used in RF absorbers, EMI suppression beads, inductors, and microwave circulators. Their permeability is high at lower frequencies and falls toward 1 at or above the ferromagnetic resonance frequency, which depends on material composition and, for biased materials, applied field.1

Magnetic metals—iron, nickel, cobalt, permalloy, and related alloys—can carry both high permeability and high conductivity. At low frequencies, they provide effective magnetic shielding because their high permeability draws flux through the shield material. At higher frequencies, eddy currents limit field penetration to a thin surface layer, reducing their effectiveness as magnetic shields and making them primarily reflective. Laminated, powdered, or composite forms suppress eddy currents and extend useful magnetic performance to higher frequencies, but at some penalty in saturation or permeability.

Ferrites and magnetic metals are both magnetic, but they behave very differently at RF frequencies precisely because one is resistive and the other is conductive. This distinction matters for measurement method selection as much as for application design.

Frequency Changes Everything

One reason that electromagnetic material characterization is complex is that the relevant physics changes qualitatively across the frequency spectrum.

At DC, charges move through the bulk or along surfaces under a static electric field. The measurement captures long-range transport: bulk resistivity, surface resistance, contact resistance. None of this directly predicts what happens when a time-varying electromagnetic wave arrives.

From a few Hz into the kHz and low-MHz range, dipole relaxation, ionic motion, interfacial polarization, and magnetic domain processes begin to contribute.4 These mechanisms respond to alternating fields, and their contributions appear in both the real and imaginary parts of permittivity and permeability. Impedance measurements in this regime can reveal relaxation processes and frequency-dependent loss—but wavelengths are enormous and fixture geometry has no relationship to how a propagating wave would actually interact with the material.

From tens of MHz into the GHz range, wavelengths shorten to the point where sample geometry starts to matter. Guided-wave transmission line and waveguide measurements become practical. The fixture imposes a well-defined field structure and the measurement directly captures how the material affects propagating signals.

Above about 1 GHz and into the millimeter-wave range—26 GHz, 77 GHz, 110 GHz—free-space measurements become increasingly practical because antennas, lenses, and material samples become manageable in size relative to wavelength. The interaction is directly representative of radar, satellite, and mmWave communication exposure.

Above 100 GHz into the THz range, materials interact with phonon modes, molecular vibrations, free-carrier dynamics, and thin-film optical behavior. THz time-domain spectroscopy becomes the tool of choice, bridging the gap between microwave and infrared optical characterization.7

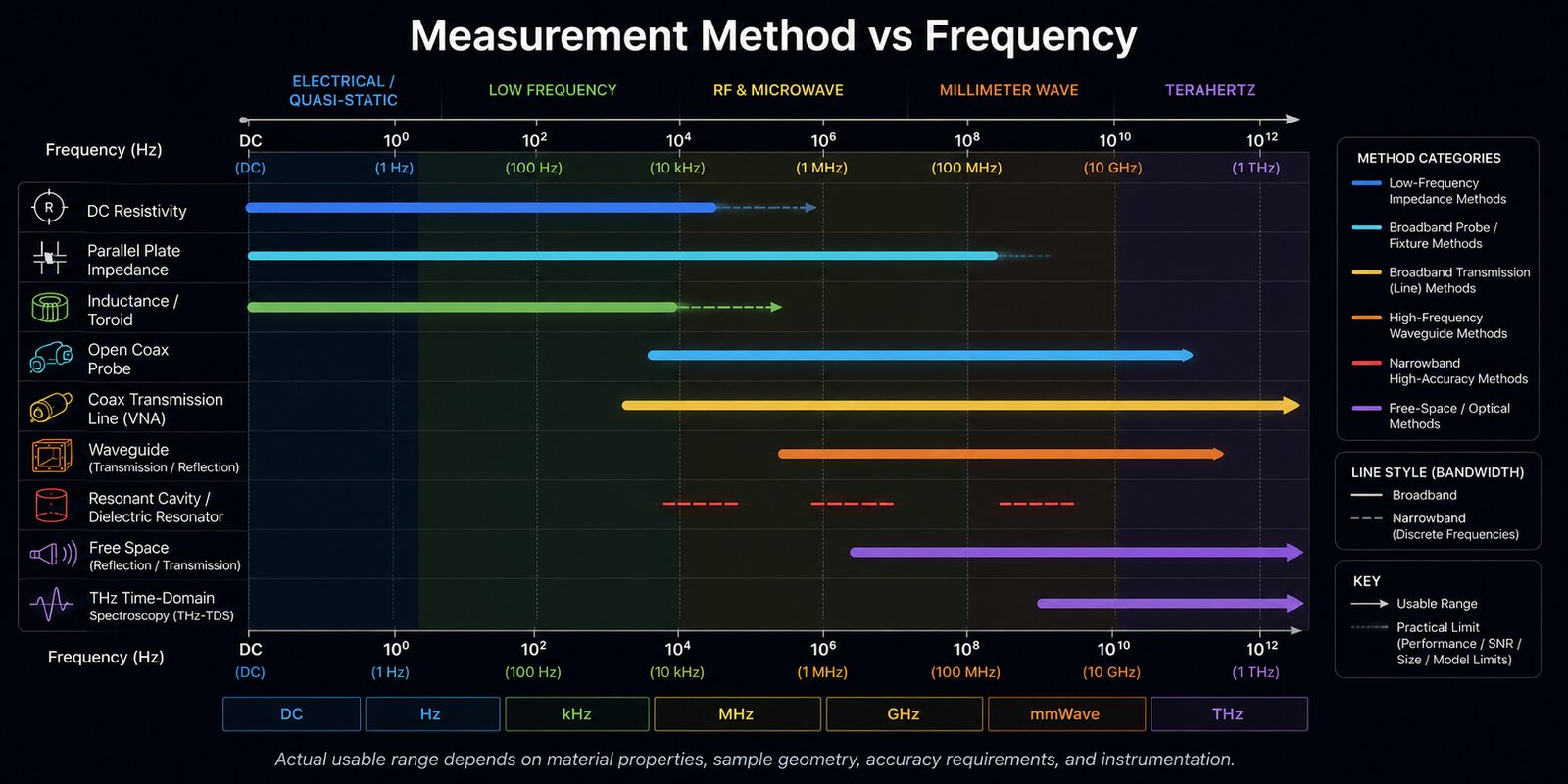

Measurement Methods from DC to THz

DC Resistance and Resistivity

DC electrical measurements determine whether a material is insulating, static dissipative, semiconductive, or conductive. Surface resistance, volume resistance, sheet resistance, and bulk resistivity are the relevant quantities, measured using electrode fixtures under controlled contact pressure, humidity, and conditioning time.

These measurements are essential for ESD material qualification, static charge control specification, and percolation studies in conductive composites. They are not sufficient to predict RF or microwave shielding performance on their own. A material's DC resistivity sets a boundary condition on what is possible at higher frequencies—a good insulator cannot become a good microwave conductor—but within the broad semiconductor-to-moderately-conductive range, the RF behavior depends on dispersion, network morphology, and impedance, not just DC resistance.3

Parallel Plate Capacitance and Low-Frequency Dielectric Measurement

At low to moderate frequencies, a material sandwiched between two conductive plates forms a capacitor whose impedance can be measured with an LCR meter or impedance analyzer. From the measured capacitance and conductance, εr′ and εr″ can be extracted using the known sample thickness and electrode area.8

This method works well for thin films, sheets, coatings, and liquids from millihertz into the low-MHz range. It is sensitive to both the real and imaginary parts of permittivity and can reveal dielectric relaxation processes across many decades of frequency.

The limitations are practical. Electrode polarization at very low frequencies can dominate the apparent loss. Fringing fields at sample edges cause errors unless the electrode geometry is carefully chosen or mathematically corrected. Air gaps between sample and electrode—even micron-scale gaps—can introduce large systematic errors in the extracted permittivity, because the air gap appears in series with the sample capacitance. Leakage currents from conductive samples can exceed the dielectric displacement current and require specialized guard electrode setups.

Inductance-Based Permeability Measurement

Magnetic permeability at low to moderate frequencies is measured by winding a coil onto a toroidal sample or inserting the sample into an inductor fixture and measuring the resulting inductance and series resistance. The change in inductance relative to an air core reveals μr′, and the change in loss reveals μr″.8

This method is appropriate for ferrites, magnetic composite toroids, and inductor core materials. It is directly sensitive to the magnetic response of the material, which parallel plate methods cannot access. The main practical challenges are demagnetizing factors and air gaps. Any air gap in the magnetic circuit drastically reduces the apparent permeability. Sample geometry must be carefully controlled, and for anisotropic or grain-oriented magnetic materials, the orientation relative to the applied field matters strongly.

Open-Ended Coaxial Probe

An open-ended coaxial probe terminates against the surface of a material and measures the reflected impedance as a function of frequency. The fringing field that extends beyond the probe tip interacts with the material near the surface, and from the reflection coefficient, ε∗ can be extracted over a broad frequency range.8

The method is attractive because it requires minimal sample preparation, is non-destructive, and can be applied to liquids, gels, biological tissues, powders, and some flat solids across frequencies from tens of MHz into the microwave range. It is widely used in biological tissue characterization and food science.9

For solid materials relevant to EMI shielding and absorbers, the open-ended probe has meaningful limitations. Surface contact quality is critical—any air gap or surface roughness introduces errors. The penetration depth is small and the measurement samples only the material near the surface. Accuracy is significantly reduced for low-loss solids where the reflection contrast between sample and air is small. Highly conductive materials can reflect from the surface before the fringing field penetrates meaningfully.

Coaxial Transmission Line with VNA

A machined cylindrical sample is inserted as a section of a coaxial transmission line, and a vector network analyzer measures the S-parameters—S11 (reflected) and S21 (transmitted)—over a broad frequency range. Established retrieval algorithms, such as the Nicolson-Ross-Weir method or its variants, then extract ε∗ and μ∗ from the measured S-parameters.3

This method is broadband, spanning from tens of MHz into the low tens of GHz depending on connector type and line dimensions. It measures both reflection and transmission simultaneously and can, in principle, extract both permittivity and permeability for magnetic materials. For non-magnetic materials, a simplified one-parameter extraction using only S21 or combined S11/S21 is often more stable.

The method is well-suited to machineable polymers, composites, and EMI shielding materials. Shielding effectiveness, insertion loss, reflection loss, and absorption can all be estimated from the same S-parameter data.

Practical limitations are significant at higher frequencies where coaxial transmission lines are smaller in diameter. Sample machining must be precise. An air gap between the sample outer diameter and the transmission line inner conductor can introduce errors that are comparable to or larger than the material effect being measured. For very lossy materials, S21 may fall below the noise floor of the instrument, limiting the extraction to reflection-based methods. Extraction algorithms can become numerically unstable for very thin, very thick, very low-loss, or very high-loss samples. The results are model-dependent, and the assumed model may not fully represent an anisotropic or inhomogeneous sample.3

Flanged Coaxial Transmission Line with VNA

A specialized variant of this approach is codified in ASTM D4935-1810, which defines a flanged coaxial transmission line fixture specifically for shielding effectiveness measurement of flat planar materials. Rather than machining a cylindrical plug, the sample is cut into a defined annular or disk geometry and clamped between flanged fixture halves, making the method accessible to materials that cannot be precisely bored or threaded.

The standard caps its specified upper frequency at 1.5 GHz, where the dominant coaxial mode remains well-behaved and sample geometry errors are manageable, but fixture designs such as the EM-2107A and EM-2108 have demonstrated compliance with the impedance and shielding effectiveness requirements of D4935-10 well beyond that limit—up to 10 GHz—by controlling flange geometry, sample contact area, and connector transitions.

Further extensions using modified flanged coaxial adapters have pushed usable measurement range to 18 GHz, though at these frequencies higher-order mode excitation, sample flatness, and contact uniformity become increasingly critical sources of uncertainty. Dynamic ranges exceeding 80 dB are achievable with these fixtures, though the practical limit is typically set by cable quality and overall VNA system noise floor rather than the fixture itself.

Rectangular Waveguide Transmission-Reflection

A sample machined to fit a specific waveguide cross-section is placed in the waveguide, and S-parameters are measured. Each waveguide band covers roughly an octave of frequency, and the method can be applied in successive bands from approximately 1 GHz to above 100 GHz using appropriate waveguide sizes.

Waveguide measurements offer a well-defined TE10 field geometry, high sensitivity, and good accuracy for band-specific material characterization. They are particularly relevant when the material will be used in waveguide or antenna system environments. For absorber qualification, a waveguide termination measurement directly evaluates how the material performs in the relevant guided-wave condition.9

The trade-off is bandwidth. A single waveguide band covers only about a 2:1 frequency range, and the sample must be precision-machined to a tight dimensional tolerance for each band. The field geometry inside the waveguide—a TE mode with no field at the broad walls and maximum field at the centerline—is not the same as a free-space plane wave, and care is needed when comparing waveguide results to free-space or coaxial measurements on the same material.

Resonant Cavities and Split-Post Dielectric Resonators

A small material sample perturbs a high-Q resonant cavity or dielectric resonator. The shift in resonant frequency reveals the real part of permittivity; the change in quality factor reveals the loss tangent.3

Resonant cavity methods offer exceptional sensitivity to small loss tangents. For low-loss substrates, ceramics, and dielectric materials used in precision RF components, they can resolve loss tangents well below 10⁻⁴—far below the resolution of broadband transmission methods. The split-post dielectric resonator (SPDR) and the end-loaded cavity are widely used variants.9

These methods are not appropriate for high-loss or broadband characterization. The measurement is at a single frequency or a small number of discrete frequencies. Sensitivity to loss degrades as material loss increases, because a high-loss sample strongly damps the resonance and the cavity behavior no longer behaves as a simple perturbation of the unloaded case. For EMI absorbers and lossy composites—which are typically the materials of greatest interest to Elect Nano—resonant methods are generally not the right tool.

Free-Space and Guided Free-Space Measurements

In free-space measurements, antennas or horn-lens assemblies illuminate a flat material slab and measure the reflected and transmitted signals. The slab is positioned in the far field or in a focused quasi-optical beam so that the illuminating wave approximates a plane wave at the sample surface. S-parameters measured this way are converted to reflection, transmission, and absorption, and material properties can be extracted using models that account for the slab geometry and internal reflections.8

Free-space methods become increasingly practical as frequency increases. At mmWave frequencies—26 GHz and above—the antennas, lenses, and samples are all of manageable physical size. The measurement is non-contact, requires no sample machining, and directly represents how the material interacts with a propagating wave in realistic exposure conditions.

Guided free-space systems such as those from SWISSto12 use precision waveguide-coupled horn and lens assemblies to create a well-collimated quasi-plane-wave beam in a compact bench-top format.11 This extends the accuracy and convenience of free-space measurement across mmWave bands.

The main practical requirements are larger sample areas—typically several wavelengths across to avoid edge diffraction effects—and careful time-domain gating to separate the material response from fixture and environmental reflections. Calibration must account for the beam pattern and the reference plane location.12 At lower frequencies, free-space methods become impractical because the required sample area and antenna separation distances grow without bound.

THz Time-Domain Spectroscopy

THz-TDS uses femtosecond laser pulses to generate and detect short electromagnetic transients spanning roughly 0.1 to 10 THz. By measuring the transmitted or reflected pulse through a material sample and comparing it to a reference pulse through air, both the amplitude and phase of the transmitted wave are recovered across the THz band in a single measurement.

From the amplitude ratio and phase difference, the complex refractive index—and therefore ε∗ and the absorption coefficient—can be extracted without the ambiguity inherent in reflection-only measurements. The method is sensitive to phonon modes, molecular vibrational resonances, free-carrier dynamics in semiconductors, and thin-film behavior.

Practical challenges include water vapor absorption, which introduces sharp spectral features and limits measurement sensitivity unless the beam path is purged with dry air or nitrogen. Surface roughness and scattering become significant at short wavelengths. Highly conductive materials reflect most of the THz beam and provide limited transmission signal for extraction.

Measurement Method Tradeoff Summary

How Material Properties Affect Method Selection

The best measurement method for a given material is not determined by frequency alone. The material's loss level, permittivity, magnetic character, form factor, and anisotropy all shift which methods are practical and accurate.

For low-loss dielectrics, resonant cavity and SPDR methods are often preferred because they provide the sensitivity needed to resolve small loss tangents. Broadband transmission methods may lack the resolution to distinguish a 10⁻⁴ loss tangent from a 10⁻³ one when the transmission insertion loss is dominated by mismatch rather than absorption. Air gaps are particularly damaging for low-loss measurements because the gap's capacitive effect rivals the material's dielectric signal.

For high-permittivity materials, precise sample thickness and geometry are critical because the phase shift through the sample is large and internal reflections are significant. Thin samples may be required at high frequencies to avoid multi-wavelength ambiguity in the extraction.

For highly conductive materials, transmission through the sample may fall below the instrument noise floor, making S21-based extraction impractical. Reflection-dominant methods, or measurements that focus on surface impedance, are more appropriate. DC resistance and surface resistance measurements remain useful for process control even when they do not directly predict RF performance.

For lossy absorbers—the primary category of interest for EMI shielding and absorber characterization—broadband methods are essential because absorber performance is inherently frequency-dependent. Coaxial, waveguide, and free-space methods provide the needed bandwidth. Resonators are not appropriate. Extraction must carefully separate the contributions of reflection, absorption, and transmission rather than treating total insertion loss as a single quantity.

For magnetic materials, the measurement must be sensitive to the H-field interaction, and both μ∗ and ε∗ must be extracted. Permeability is strongly frequency-dependent and can be sensitive to applied DC bias fields. Conductive magnetic metals require attention to skin depth and eddy current effects. Ferrites, with lower conductivity, can often be characterized more cleanly by transmission-line and free-space methods over a wider frequency range.3

For anisotropic or layered materials, the field orientation relative to the material structure must be controlled and documented. In-plane and through-thickness permittivity can differ significantly in fiber composites and layered films. Free-space measurements probe the through-thickness direction for normal incidence, while coaxial measurements in some fixture designs probe the in-plane direction. These are different tensor components of the same material, and results from one fixture should not be assumed to apply to the other orientation.

How Elect Nano Characterizes EMI Shielding and Absorber Materials

No single measurement technique captures the complete electromagnetic behavior of advanced nanocomposite materials across the frequency range relevant to their applications. Elect Nano uses a multi-method measurement workflow that builds a consistent picture from DC through mmWave.

Low-Frequency Capacitive and Electrical Measurements

At the foundational level, Elect Nano applies low-frequency electrical and capacitive measurements to screen material uniformity, percolation behavior, surface and volume resistance, and low-frequency dielectric response. These measurements identify where a material sits on the insulating-to-conductive continuum, confirm that filler dispersion is consistent across a sample or batch, and establish a baseline before moving into RF characterization. For ESD and static dissipative materials, these measurements directly address the relevant performance specification. For absorber and shielding materials, they inform the starting conditions for higher-frequency evaluation.

VNA-Based Coaxial Transmission-Line Measurements

Elect Nano uses VNA-based coaxial transmission-line measurements to characterize broadband electromagnetic performance from RF through microwave frequencies. From the measured S-parameters:

• S11 captures the reflected signal—energy that does not enter the material.
• S21 captures the transmitted signal—energy that passes through without absorption.
• Together, S11 and S21 allow estimation of total shielding effectiveness, reflection loss, absorption loss, and—where sample geometry and extraction model validity are confirmed—complex permittivity and permeability.

This method is particularly well-suited to the conductive nanocomposite materials in Elect Nano's portfolio: polymer compounds loaded with dCNTs, carbon black, or hybrid filler systems that are molded or formed into sheets, gaskets, coatings, and enclosure components. The coaxial fixture bridges the gap between DC electrical behavior and actual microwave interaction, providing the broadband view that neither DC measurements nor narrowband resonator methods can deliver.

SWISSto12 Guided Free-Space Measurements

At millimeter-wave frequencies, Elect Nano uses the SWISSto12 guided free-space measurement system to evaluate material performance under wave-illumination conditions that are directly representative of real-world mmWave exposure. This system uses precision horn and lens assemblies to generate a well-collimated quasi-plane-wave beam across mmWave frequency bands, allowing measurement of flat material panels, coatings, and absorber slabs in a non-contact configuration.

This measurement is particularly relevant for applications in mmWave telecommunications (5G/6G), automotive radar, satellite communications, and wideband RF absorber qualification, where the material must interact with propagating waves at frequencies above where coaxial fixtures are practical. The guided free-space measurement directly reveals whether a material reflects, absorbs, or transmits incident mmWave energy—and to what degree—at the frequencies that matter for the intended application.

Why a Multi-Method Approach is Necessary

The core reason Elect Nano uses multiple measurement methods is that each method resolves a different aspect of the same material's electromagnetic behavior, and none of them individually is sufficient.

DC resistance is not GHz shielding. A DC measurement tells you whether charge can move through the bulk, but it does not account for skin depth, frequency-dependent permittivity, impedance mismatch, or the geometry of the wave interaction. A material that measures 10⁴ Ω/sq on a DC surface resistance probe may be an excellent microwave reflector, a moderate absorber, or a poor shield depending on how its properties change with frequency.

High conductivity is not high absorption. As discussed above, high conductivity drives the wave impedance far from 377 Ω, which causes strong reflection before absorption can occur. Engineered absorbers must be designed to allow the wave to enter, not just to lose whatever does enter.

High loss is not useful if the wave cannot enter the material. A material with an extremely high loss tangent but also a very high permittivity may reflect most of the incident wave from the front surface. Total shielding effectiveness is the combination of reflection loss and absorption loss, and they are not interchangeable.

Magnetic loading can improve impedance matching over the frequency range where μ′ and μ″ remain active, but that range is limited and frequency-dependent. Above ferromagnetic resonance, μr returns toward 1 and any impedance benefit disappears.

Advanced nanocomposites require measurement across frequency, field configuration, and geometry to confirm that the full picture is understood before a material is specified for a real application.

"By combining capacitive, coaxial VNA, and guided free-space measurements, Elect Nano connects material formulation to real electromagnetic function—from static charge control to microwave and millimeter-wave shielding and absorption."
